LLM Priors for Causal Discovery

A framework that integrates LLM-based causal reasoning into data-driven causal discovery, resulting in improved and robust performance.

On Incorporating Prior Knowledge Extracted from Large Language Models into Causal Discovery Published in IEEE Access

Abstract

LLMs can reason about causality by leveraging vast pre-trained knowledge and text descriptions of datasets, even when data is scarce. But current LLM-based causal reasoning has two crucial limitations:

  1. Prompting is inherently inefficient for large tabular datasets once context-length consumption is accounted for.
  2. The methods are not adept at comprehending whole interconnected causal structures — they reason pairwise.

Data-driven causal discovery has the opposite profile: it discovers the structure as a whole, but works well only when the number of observations is sufficiently large. To overcome the limitations of each approach, we propose a framework that integrates LLM-based causal reasoning into data-driven causal discovery, resulting in improved and robust performance. The framework further extends to time-series data.

Contributions

  1. We demonstrate that LLM-based pairwise causal reasoning is not suitable for holistically eliciting a causal structure.
  2. We propose a framework that integrates LLM-based causal reasoning with both static and time-series data-driven causal discovery.
  3. The framework not only outperforms baselines but shows superior robustness in mitigating LLM hallucination over concurrent hybrid frameworks.
  4. We propose a recipe for extending LLM-integrated causal discovery to time-series data — LLM-based causal reasoning on time-series, plus evaluation graph annotation and data generation that require only PDEs constructed by domain experts.

Method

Framework overview
Given a dataset, LLM-based causal reasoning returns an adjacency matrix as prior. Utilizing the prior, a data-driven causal discovery algorithm returns a learned structural coefficient matrix, which is mapped to a binary matrix.

Variable pairs are selected from the tabular dataset and posed to the LLM as multiple-choice prompts; the individual answers are assembled into a prior knowledge matrix \(\mathbf{K}\). That prior then shapes the data-driven optimization in three ways:

1. Graph initialization — initialize the structural coefficients from the prior:

\[\mathbf{W} = \lambda \cdot \mathbf{K}\]

2. Regularization — penalize divergence from the prior:

\[\sum_{i,j} \left\lvert \sigma(\mathbf{W}_{i,j}) - \mathbf{K}_{i,j} \right\rvert\]

3. Optimization boundaries — constrain the search space:

\[B_{\text{lower}} \leq \lvert \mathbf{W}_{i,j} \rvert \leq B_{\text{upper}}\]

The paper also analyzes where LLM causal reasoning breaks down: the limits of prompt engineering, the difficulty of leveraging causal structural information, an ablation of cumulative versus complete prompting, and the challenges of extending LLM reasoning to time-series.

Experiments

Static datasets

Two real-world datasets of contrasting size:

  • Arctic Sea Ice — small scale, 12 Earth-science variables and 486 instances; its causal graph has 48 edges and is not constrained to be acyclic.
  • Sachs — large scale, over 7,000 observations.

Arctic Sea Ice challenges causal discovery in two ways: learning structure from limited samples, and learning cyclic structures. We conjecture LLMs are less affected — LLM-based reasoning does not require many samples, and each edge in the annotated graph corresponds to findings reported in published literature, which LLMs are likely to have seen during training. So when the data alone is insufficient for structural learning, the LLM can still supply meaningful prior knowledge.

Heatmaps on the Sachs dataset
Heatmaps in Sachs dataset by a) GPT-4, b) NOTEARS, c) NOTEARS with GPT-4 prior, d) DAG-GNN, and e) DAG-GNN with GPT-4 prior.

Mitigating hallucination, keeping explainability

  • GPT-4 alone often generates false predictions with full confidence, reflected in its discrete-valued structural coefficients. These hallucinations are hard to audit: LLMs can emit natural-language explanations, but those often do not align with the actual reasoning process and may themselves contain hallucinated causal claims.
  • DAG-GNN alone predicts continuous-valued coefficients — better interpretability and a reduced gap between true and false predictions — but its overall performance, especially TPR, remains inferior to GPT-4.
  • Our framework combines both: it corrects GPT-4’s hallucinations while preserving the explainability of data-driven methods through continuous structural coefficient estimation.

Time-series datasets

Existing time-series benchmarks either lack the real-world semantic interpretability needed for LLM priors, or provide no ground-truth causal graph. We therefore simulate datasets grounded in well-established PDEs from finance and epidemiology — Black-Scholes and SEIHR — with a time lag of 1. Grounding the generation in PDEs with clear semantics yields both domain-aligned variable relationships and reliable ground-truth structures.

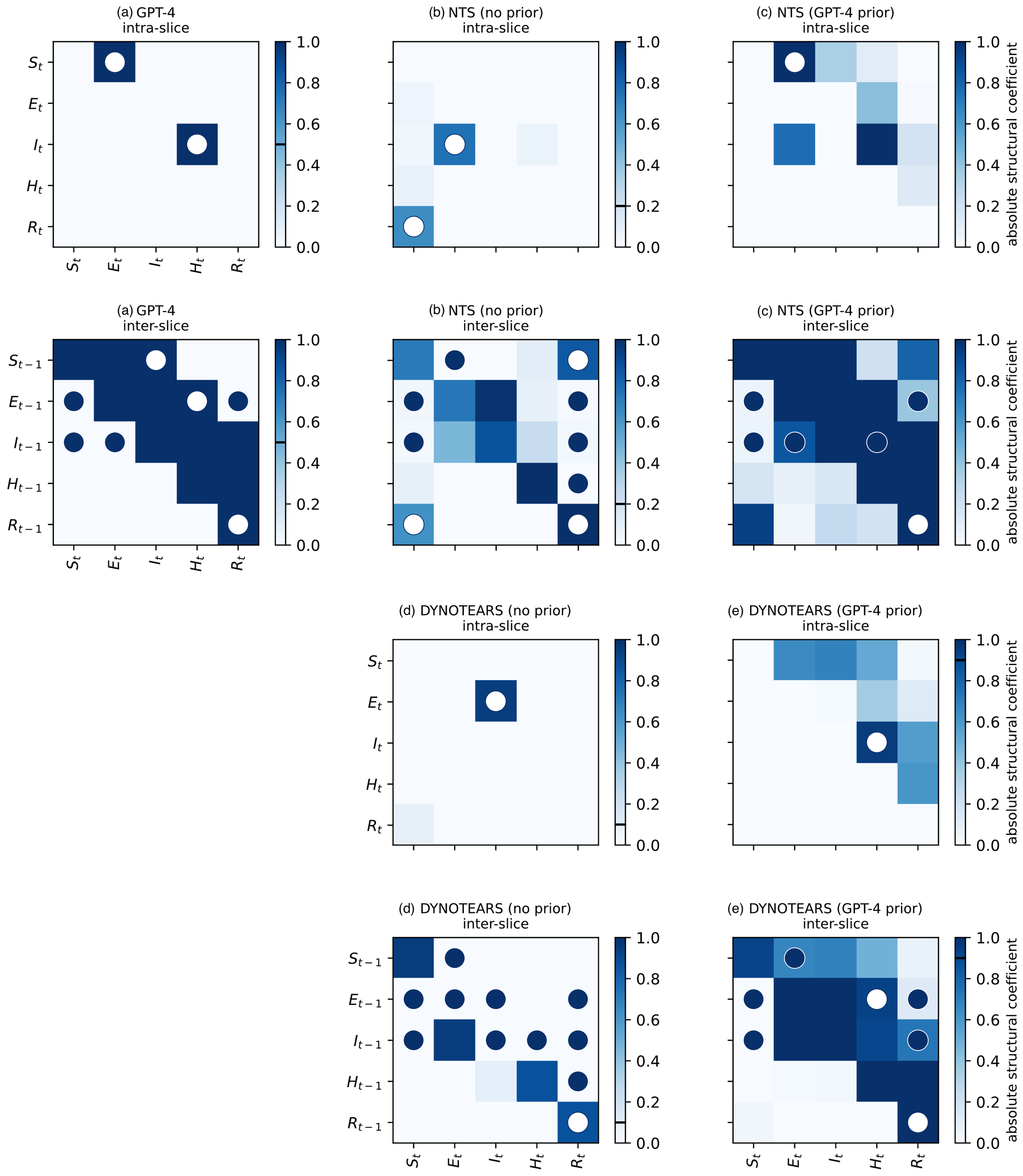

Heatmaps on the SEIHR dataset
Heatmaps in SEIHR dataset by a) GPT-4, b) NTS-NOTEARS, c) NTS-NOTEARS with GPT-4 prior, d) DYNOTEARS, and e) DYNOTEARS with GPT-4 prior.

Applicability to high-dimensional real-world data is further demonstrated on the S&P 100 dataset.

SHD, FDR and TPR on physical knowledge-based synthetic datasets
SHD, FDR, and TPR of NOTEARS and CGNN on the physical knowledge-based synthetic datasets with and without LLM prior.
